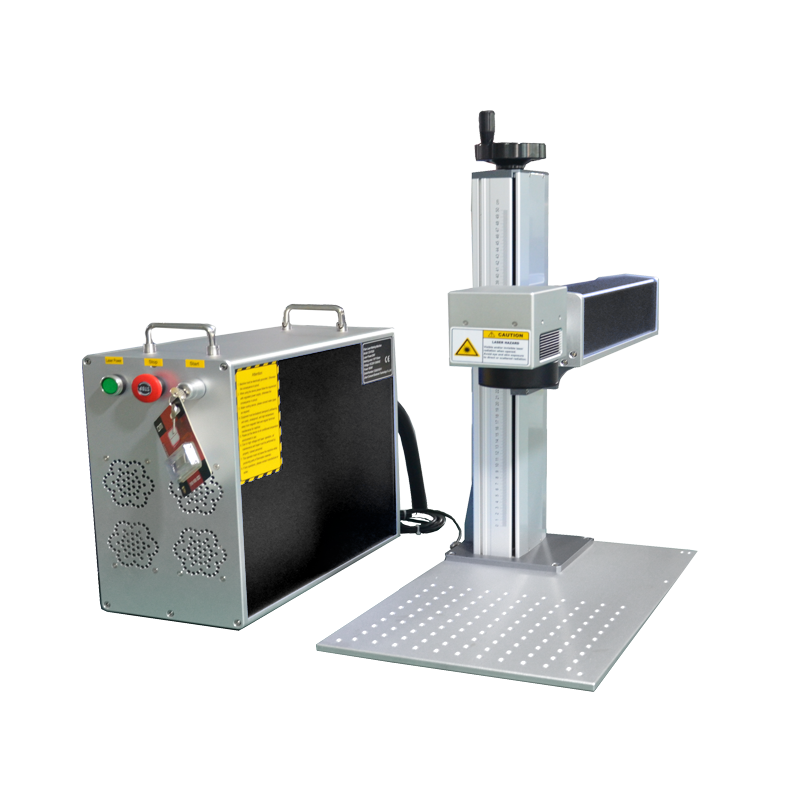

Hot Sale Small Desktop Fiber Laser Marking Machine
Hot Sale Small Desktop Fiber Laser Marking Machine - Image 2
Hot Sale Small Desktop Fiber Laser Marking Machine - Image 3
,

Hot Sale Small Desktop Fiber Laser Marking Machine

Rating：
Our fiber laser marking machine is engineered for hassle – free mobility. It’s air – cooled and compact, ensuring it takes up minimal space.
This machine offers a perfect output beam, boasting high reliability, no consumables, and zero maintenance. It has a long service life.
We’ve integrated an imported German IPG fiber laser with the latest and most reliable international design. It’s small, energy – efficient, and doesn’t need high – voltage power or a large water – cooling setup.
The laser beam is nearly ideal. It comes with a USB interface for output control and an optical scanning system. With a high laser repetition rate, it operates at high speed without distortion.
Categories: ,

Main Feature:

Laser Generator
The highly integrated fiber laser generator emits a superior laser beam with uniform power density and stable output. Thanks to the optical isolator, the machine’s anti – reflection ability is greatly enhanced. It can mark most high – reflective materials like aluminum, copper, gold, and silver clearly, without shadows or blurring.
Scanning Galvanometer
An advanced digital high – speed scanning galvanometer is adopted. It operates quickly and accurately, has a small size, and offers excellent stability, reaching international advanced standards.
Design and Cooling
With a modular design separating the laser generator and lifter, it provides more flexibility for marking large areas and complex surfaces. It’s air – cooled, occupies little space, and is easy to install.
Operating System
The embedded operating system outperforms domestic counterparts. It has a user – friendly touch interface and a powerful control system, meeting the needs of most industrial processes.
General Advantages
It features high photoelectric conversion efficiency, simple operation, and a compact structure. It can work in harsh environments and has no consumables.
Optional Features
  • Motorized Up – Down: Comes with an adjustable – speed motor, up/down buttons, and a red – dot pointer. Align the red dots using the buttons to find the focus.
  • Software – Controlled Auto – Focus: Equipped with a stepper motor and an auto – focus button. Input the workpiece thickness in Ez cad software, and the head will adjust to the correct focus.
  • Galvo Scanner – Controlled Auto – Focus: Features a Galvo scanner with a sensor, stepper motor, up/down buttons, and an auto – focus button. Start auto – focus, and the sensor guides the head to the focus.
  • Conveyor Belt for Marking Pen: It can be equipped with a conveyor belt for marking pens and a PLC program.

Machine Parameters:

Type specification CS-FD20 CS-FD30 CS-FD50
Wave length of laser 1064nm
Laser repetition frequency 20kHz~100kHz
Laser power 20W     30W      50W
Marking scope 70*70mm 110*110 mm 150*150mm 175*175mm 200*200mm 250*250mm 300*300mm optional
Laser sources Fiber module
Laser Head Scanning head
The minimum focus facula diameter 20μm
Minimal character 0.01mm
Marking speed ≤7000mm/s
Repeated accuracy 0.0025mm
Cooling ways Force-air Cooling
Power supply 220V/ 50Hz/2kVA
Process Material All kinds of metal and part of Non-metal Materials
Support format PLT, BMP, DXF, JPG, TIF, AI etc
Package Standard Crate for export
Package Size and Gross Weight 92CM L X 52CM W X 86CM H  70KG
