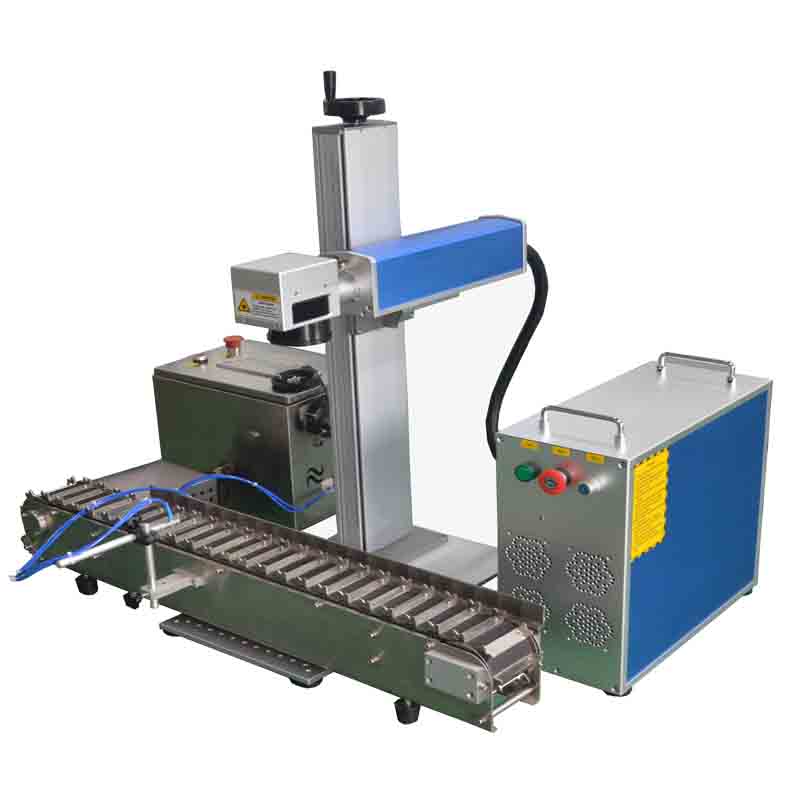

Desktop Fiber Laser Marking Machine with Conveyor Belt for Marking Pen

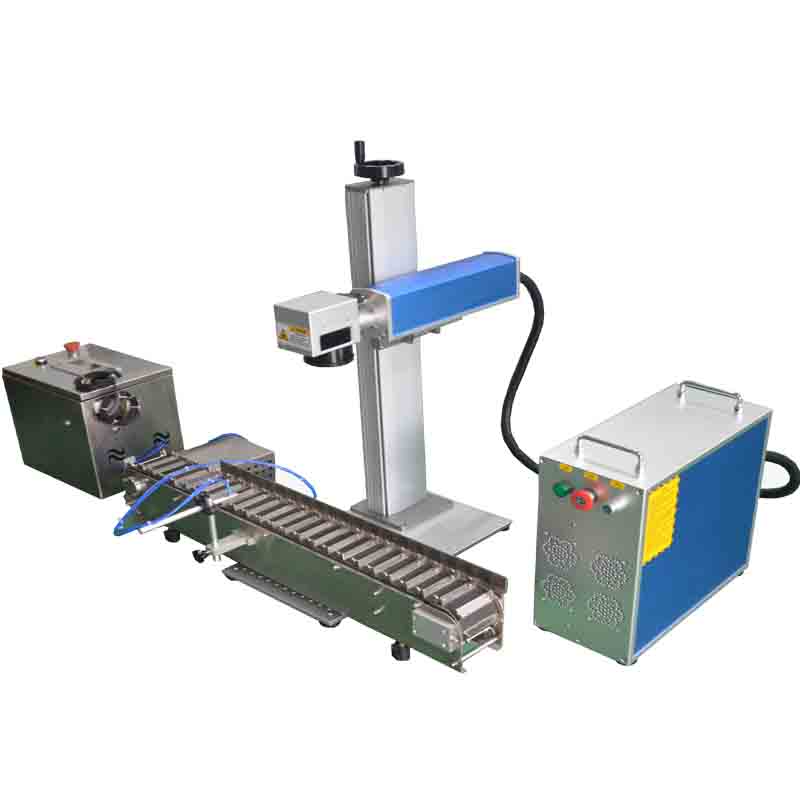

Desktop Fiber Laser Marking Machine with Conveyor Belt for Marking Pen - Image 2
,

Desktop Fiber Laser Marking Machine with Conveyor Belt for Marking Pen

Rating：
Our fiber laser marking machine is engineered for hassle – free mobility. It’s air – cooled and compact, ensuring it takes up minimal space.
This machine offers a perfect output beam, boasting high reliability, no consumables, and zero maintenance. It has a long service life.
We’ve integrated an imported German IPG fiber laser with the latest and most reliable international design. It’s small, energy – efficient, and doesn’t need high – voltage power or a large water – cooling setup.
The laser beam is nearly ideal. It comes with a USB interface for output control and an optical scanning system. With a high laser repetition rate, it operates at high speed without distortion.
Categories: ,

Main Feature:

Laser Generator
The highly integrated fiber laser generator emits a superior laser beam with uniform power density and stable output. Thanks to the optical isolator, the machine’s anti – reflection ability is greatly enhanced. It can mark most high – reflective materials like aluminum, copper, gold, and silver clearly, without shadows or blurring.
Scanning Galvanometer
An advanced digital high – speed scanning galvanometer is adopted. It operates quickly and accurately, has a small size, and offers excellent stability, reaching international advanced standards.
Design and Cooling
With a modular design separating the laser generator and lifter, it provides more flexibility for marking large areas and complex surfaces. It’s air – cooled, occupies little space, and is easy to install.
Operating System
The embedded operating system outperforms domestic counterparts. It has a user – friendly touch interface and a powerful control system, meeting the needs of most industrial processes.
General Advantages
It features high photoelectric conversion efficiency, simple operation, and a compact structure. It can work in harsh environments and has no consumables.
Desktop Fiber Laser Marking Machine is equipped with conveyor belt and PLC program, when we want to mark pens, we can put the conveyor belt on the table. Its working method is:  when photoelectronic switch is sensing the pen, the conveyor belt will stop, and machine will start marking, after marking, the conveyor belt will move. If we do not mark pens, we can take out the conveyor belt, use machine as ordinary machine.

Machine Parameters:

Type specification

CS-FD20 CS-FD30 CS-FD50

Wave length of laser

1064nm

Laser repetition frequency

20kHz~100kHz

Laser power

20W     30W      50W

Marking scope

70*70mm 110*110 mm 150*150mm 175*175mm 200*200mm 250*250mm 300*300mm optional

Laser sources

Fiber module

Laser Head

Scanning head

The minimum focus facula diameter

20μm

Minimal character

0.01mm

Marking speed

≤7000mm/s

Repeated accuracy

0.0025mm

Cooling ways

Force-air Cooling

Power supply

220V/ 50Hz/2kVA

Process Material

All kinds of metal and part of Non-metal Materials

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Package

Standard Crate for export

Package Size and Gross Weight

92CM L X 52CM W X 86CM H  70KG
