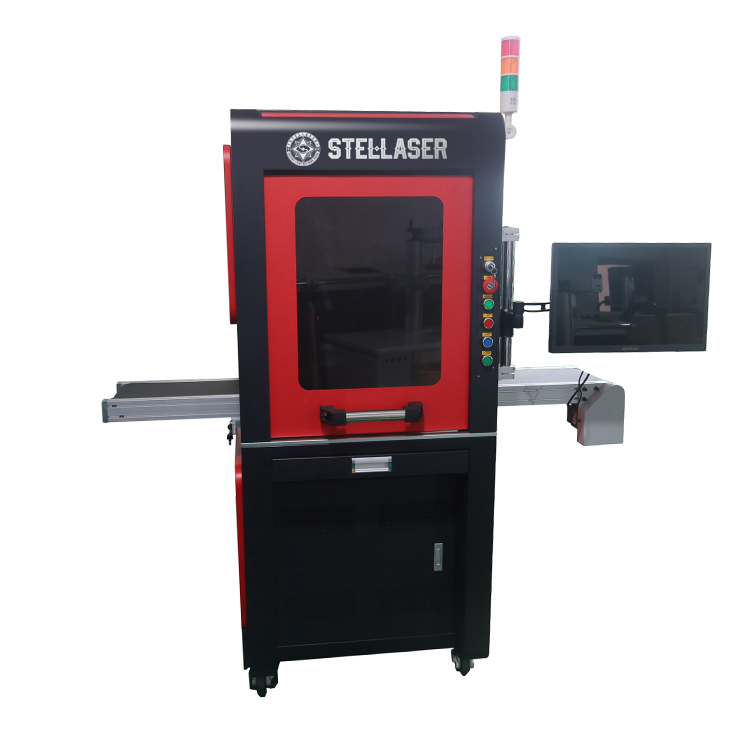

Enclosed Fiber Laser Marking Machine Machine with CCD automatic visual and positioning system

Fiber Laser Marking Machine With CCD for metal parts

Rating：

Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free. Long life Working. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed, without distortion.

Main Feature:

Machine Desciption of CCD Camera Positioning Laser Marking Machine:

The machine has imported high-precision CCD camera positioning and large-scale graphic visual recognition system, which can be integrated with different light sources such as optical fiber, CO2, UV, etc. it can not only automatically locate products for marking and automatic detection of defective products, but also realize large-scale visual positioning and marking through the moving platform.

Features of CCD Camera Positioning Laser Marking Machine:

automatic intelligent positioning
suitable all kinds of metal and some nonmetallic material
supports automatic loading&unloading system

Machine Parameters:

Type specification	CS-F20 CS-F30 CS-F50 CS-F100
Wave length of laser	1064nm
Laser repetition frequency	20kHz~100kHz
Laser power	20W 30W 50W 100W
Marking scope	7070mm 110110 mm 150150mm 175175mm 200200mm 250250mm 300*300mm optional
Laser sources	Fiber module
Laser Head	Scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	≤7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Force-air Cooling
Power supply	220V/ 50Hz/2kVA
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard Crate for export
Package Size and Gross Weight	1.67X1.29X1.81m 310kg
